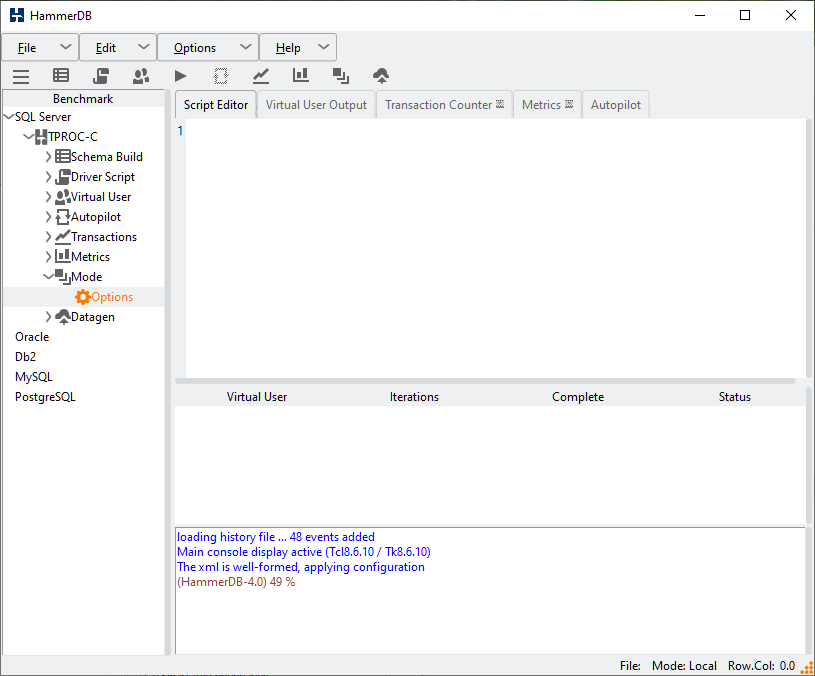

From the tree-view select Mode Options.

Figure 8.2. Mode Options

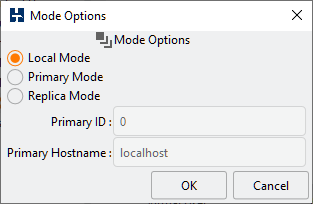

This displays the Mode Options as shown in Figure 3 confirming that the current mode is Local.

Figure 8.3. Mode Options Select

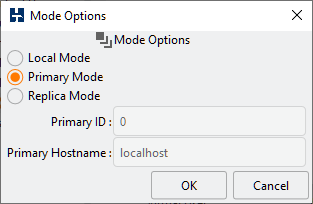

Select Primary Mode and click OK.

Figure 8.4. Primary Mode Select

Confirm the selection.

Figure 8.5. Mode Confirmation

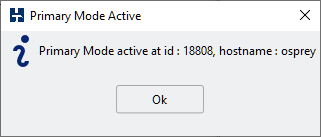

This will show that Master Mode is now active and the ID and hostname it is running on.

Figure 8.6. Mode Active

Note that this will also be recorded in the console display and the current Mode displayed in the status bar at the bottom right of the Window.

Setting Primary Mode at id : 18808, hostname : osprey
